RAZE indeterminacy MANAGE with confidence

With RA.ZE (Rational Gaze) you can create applications for artificial vision and 3D robot guides

KEY FEATURES

  • 3D reconstruction sensors
  • 3D localization
  • Calibration between the robot and the vision system
  • Communication with PLC
  • Communication with robots
  • Use of numerous sensors in one system
  • Simultaneous execution of vision processes

Choose a licence suitable for your project:

lite

standard

advanced

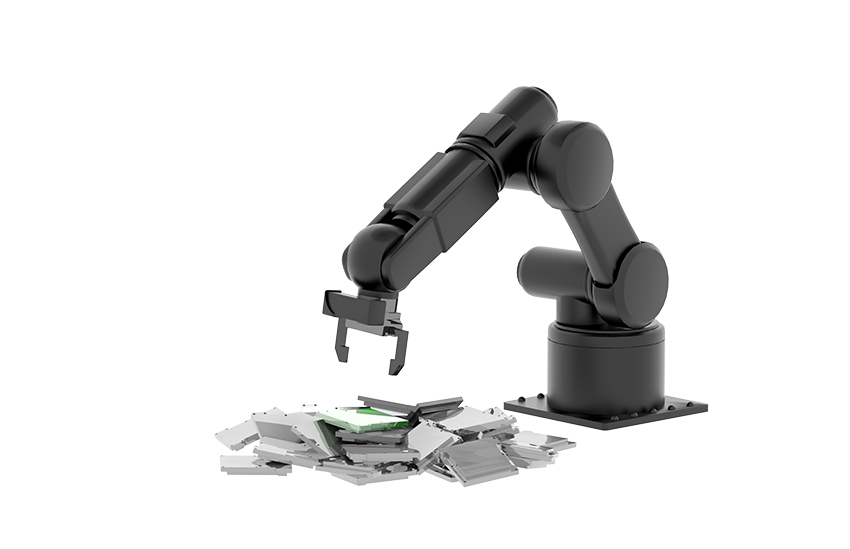

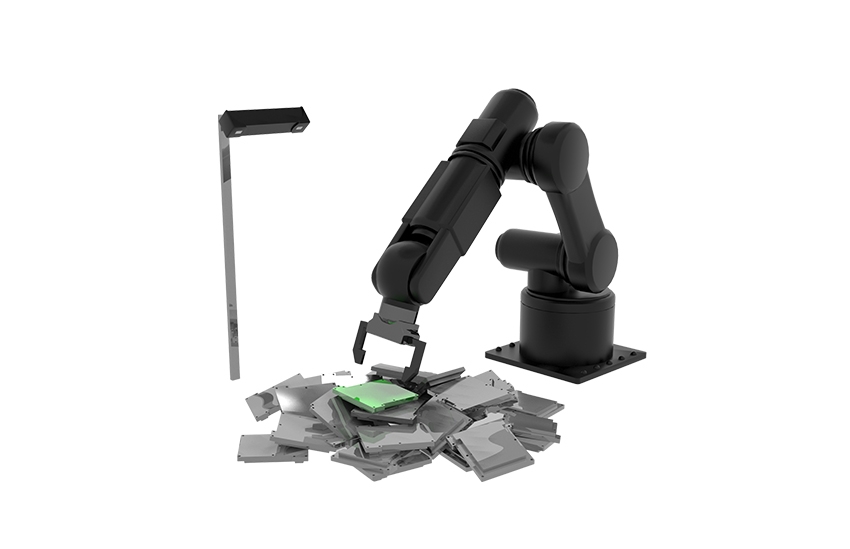

GUIDE ROBOT TO

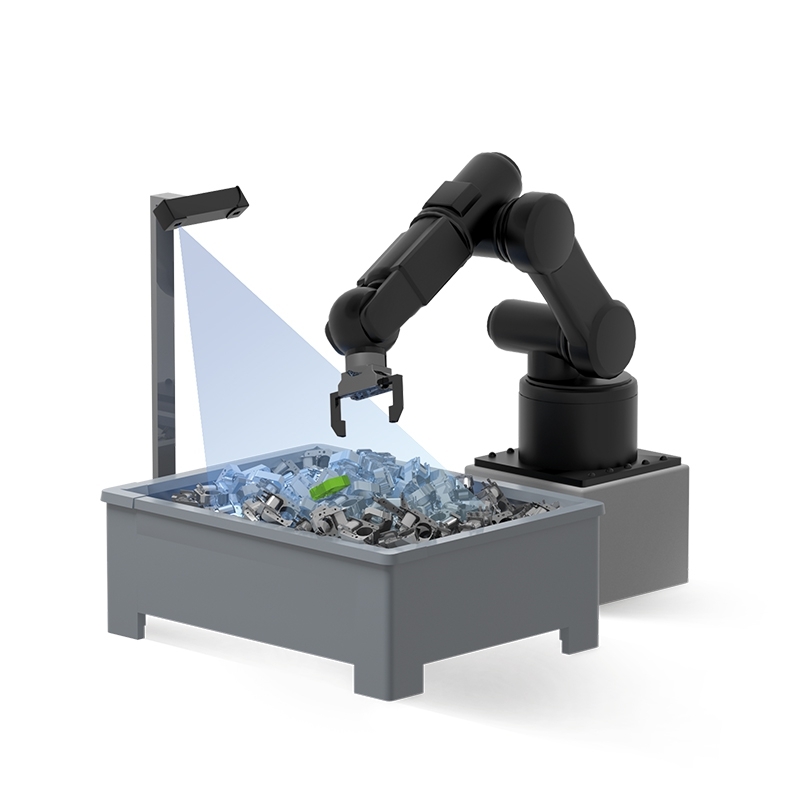

  • BinPicking
  • Depalletizing
  • Picking on conveyors or plans
  • Assembly
  • Screw
  • Riveting
  • Welding

POWERFUL 3D LOCALIZATION ALGORITHM

Key benefits

It does not require a contrasting background for the objects

localization of reflecting objects

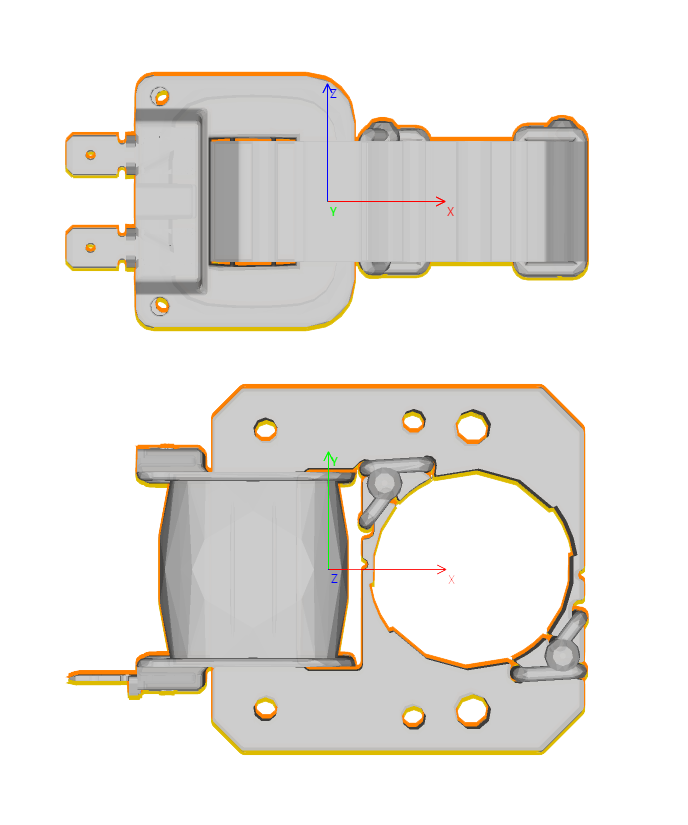

Creation of models from CAD

Independent models from the acquisition set-up

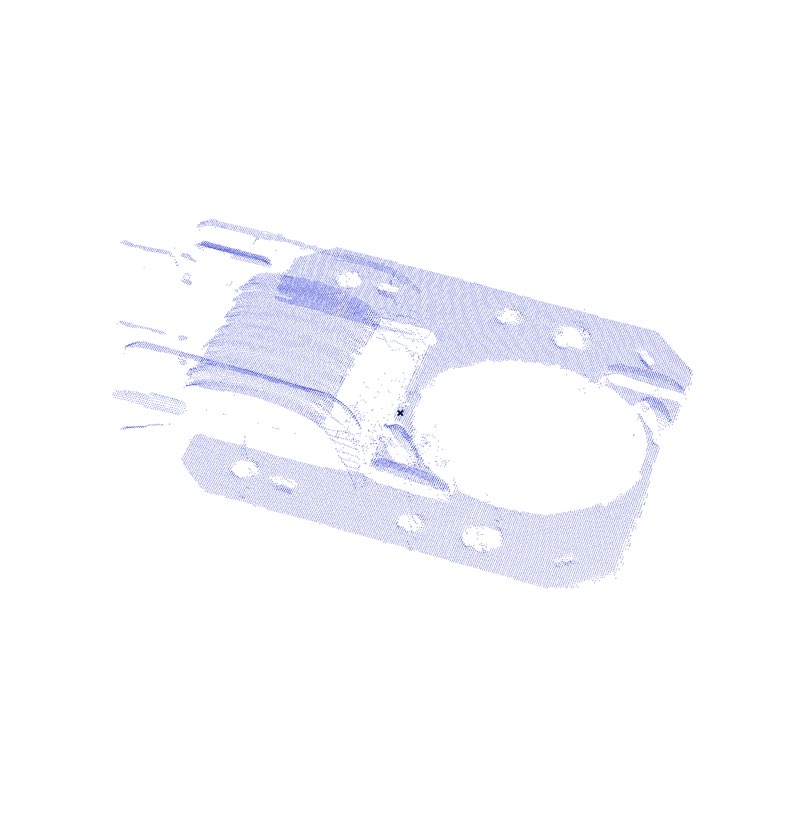

MEASUREMENT OF THE REPEATABILITY OF 3D RECONSTRUCTIONS

It measures the repeatability of 3D reconstructions. It objectively evaluates the data you are acquiring thanks to the sensor.

MEASUREMENT OF THE REPEATABILITY OF 3D LOCALIZATIONS

It measures the repeatability of localization. It objectively evaluates system performances while you are setting it up.

CALIBRATION BETWEEN THE ROBOT AND THE VISION SYSTEM

Key benefits

Possibility to install a fixed sensor or a sensor on a robot

Use of all degrees of freedom of the robot to perform grips and assemblies

High precision of the coordination between the robot and the vision system

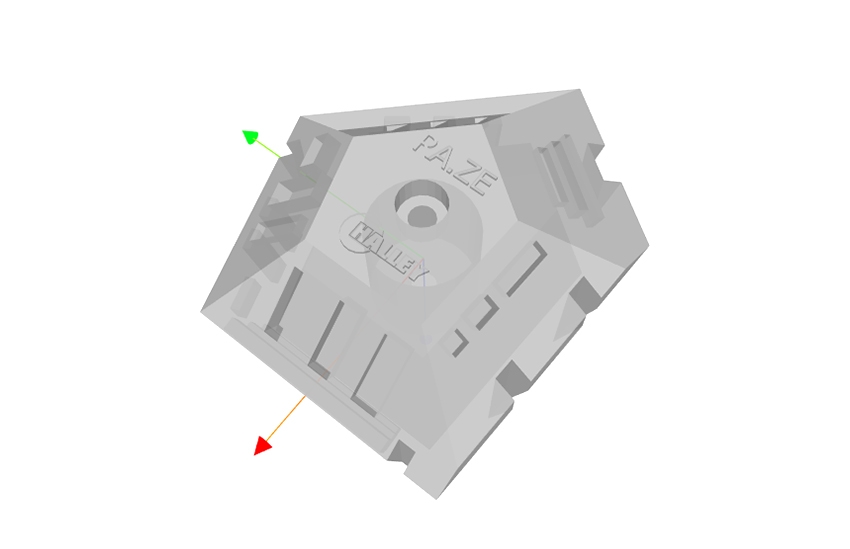

Compact calibration object that can be installed on the robot or inside a team of robots

Integrated matrix 3d sensors

RANGE OF INTEGRATED SENSORS

Resolution from 1 Mp to 12 Mp

Volumes reconstructed up to  2400 x 1800 x 2200 mm

Reconstruction accuracy up to 0.007 mm

Min. scan time 0.3 s

Integrated light

Various IP protections

INTEGRATION WITH PLC AND ROBOT

INTEGRATION UTILITY

Functional-block for TIA-Portal

Integration also through TCP-IP

Utility software to test and monitor the communication

Operation visualisation with communication log

COMPATIBLE ROBOTS
